Home >> Products >>Industrial lens >> K-WELLFA lens
Product Detail

K-WELLFA lens

Product features

High-resolution design, high imaging quality

Low distortion, high precision

The large-stroke focusing range is from 100mm to infinity

The focal length covers 4mm to 100mm

Compared with the comparison height, it effectively ensures the uniformity of the picture brightness


商品说明

I. Compatible with 2/3" inch CCD parameter tables


型号焦距最小工作距离光圈范围F#光学畸变滤镜尺寸兼容芯片接口
FA-5M0420A41002<0.5%无1/1.8"C-mount
FA-5M0410A4602.8<3%无2/3"C-mount
FA-5M0528C51002.8<3%无2/3"C-mount
FA-5M0619A61001.9<1.7%M37*0.52/3"C-mount
FA--5M080581001.6<0.5%M35.5*0.52/3"C-mount
FA--5M1205121001.6<0.2%M30.5*0.52/3"C-mount
FA-5M1605161001.6<0.1%M30.5*0.52/3"C-mount
FA--5M2505251001.6<0.1%M30.5*0.52/3"C-mount
FA--5M3505351501.6<0.1%M30.5*0.52/3"C-mount
FA--5M5005503002<0.1%M30.5*0.52/3"C-mount
FA-5M7505755002.8<0.05%M30.5*0.52/3"C-mount

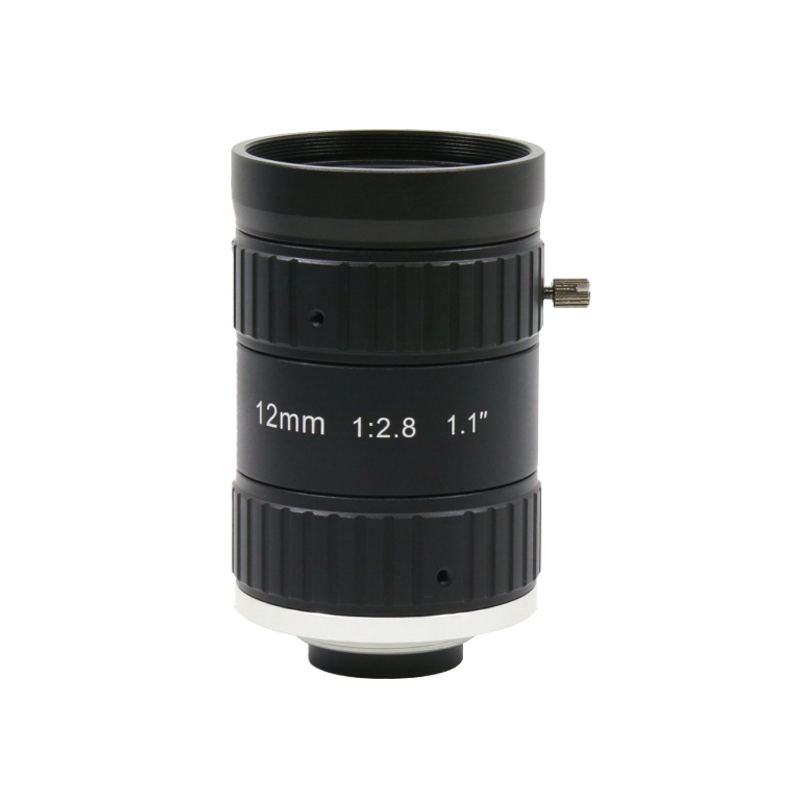

2000W像素定焦镜头 FA 1.1"


Product features

High resolution, ultra-high imaging quality

It is compatible with a maximum 20-megapixel camera of 1.1 inches.

The focusing range is from 100mm to infinity

Lower distortion rate, suitable for various needs

Compared with the comparison height, it effectively ensures the uniformity of the picture brightness

Multi-layer coating effectively suppresses stray light


Ii. Compatible with 1.1" inch CCD parameter tables


型号焦距最小工作距离（mm)光圈范围F#光学畸变滤镜尺寸mm兼容芯片接口
FA--20M08208mm1002.4~16<1.5%无1.1"C-mount
FA--20M122012mm1002.4~16<1%无1.1"C-mount
FA--20M162016mm1002.4~16<0.5%M40.5*0.51.1"C-mount
FA--20M252025mm1002.4~16<0.2%M35.5*0.51.1"C-mount
FA--20M352035mm2002.4~16<0.1%M35.5*0.51.1"C-mount
FA--20M502050mm3002.4~16<0.1%M40.5*0.51.1"C-mount
FA-20M752075mm5002.8~16<0.15%M34*0.51.1"C-mount
FA-25M1825A18mm4004<0.2%
1.2"C-mount
FA-25M7025A70mm5004<0.2%
1.2"C-mount
FA-25M1004A100mm4504<0.1%
1.2"C-mount
